Webhooks for document and parsing events

Affinda has implemented webhooks to allow the data extracted by Affinda to be ‘pushed’ to you when an event occurs (e.g. document parsed or document validated), instead of you having to constantly poll our API to ‘pull’ the data to your system.

Webhooks can be created at an Organization or Workspace level

RESThooks

We have implemented a slightly extended version of webhook called “RESTful webhook”, or “resthook”. It allows you to programmatically manage webhook subscriptions like you would with any RESTful resources. For end-users, it means setting up a webhook subscription is a matter of clicking buttons, and no copy-pasting of URLs and cryptic tokens.

Create a webhook subscription

There are 2 steps to creating a webhook:

Subscribe to an event
The receiver confirms its intention to subscribe

Request

URL: https://api.affinda.com/v3/resthook_subscriptions
(endpoint details here) Method: POST Body:

{
  "targetUrl": "https://your-receiver-domain.com/receive/",
  "event": "document.parse.completed",
  "organization": "{{organization_identifier}}"
}

Available events:

Event Name	Description
document.parse.completed	Document has completed parsing, the parsing may have succeeded or failed
document.parse.succeeded	Document parsing has succeeded
document.parse.failed	Document parsing has failed
document.validate.completed	Document has been validated
document.classify.completed	Document has completed classifying, the classification may have succeeded or failed
document.classify.succeeded	Document classification has succeeded
document.classify.failed	Document classification has failed
document.rejected	Document has been rejected (automatically or by a user)

The following events are deprecated in API V3 and should be used only by customers using API V2. API v3 customers should use the ‘document’ events above.

Event Name	Description
resume.parse.completed	Resume has completed parsing, the parsing may have succeeded or failed
resume.parse.succeeded	Resume parsing has succeeded
resume.parse.failed	Resume parsing has failed
invoice.parse.completed	Invoice has completed parsing, the parsing may have succeeded or failed

Response

Status code: 201 Body:

{
  "id": 1,
  "event": "document.parse.completed",
  "targetUrl": "https://your-receiver-domain.com/receive/",
  "organization": {
    "identifier": "{{organization_identifier}}",
    "name": "{{organization_name}}",
    "userRole": "admin",
    "avatar": null,
    "resthookSignatureKey": "{{resthook_signature_key}}",
    "isTrial": false
  },
  "active": false,
  "version": "v3",
  "autoDeactivated": false,
  "autoDeactivateReason": ""
}

After the last step, we’ll POST to the receiver at https://your-receiver-domain.com/receive/ with a X-Hook-Secret header. The receiver should respond to this request with a 200 status code, and then activate the subscription using the X-Hook-Secret as below

Request

URL: /v3/resthook_subscriptions/activate Method: POST Headers:

X-Hook-Secret: <The X-Hook-Secret you received>

Response

{
  "id": 1,
  "event": "document.parse.completed",
  "targetUrl": "https://your-receiver-domain.com/receive/",
  "organization": {
    "identifier": "{{organization_identifier}}",
    "name": "{{organization_name}}",
    "userRole": "admin",
    "avatar": null,
    "resthookSignatureKey": "{{resthook_signature_key}}",
    "isTrial": false
  },
  "active": true,
  "version": "v3",
  "autoDeactivated": false,
  "autoDeactivateReason": ""
}

Example code

import requests
from some_framework import make_response

def receiver(request):
  if "X-Hook-Secret" in request.headers:
    # Confirm subscibe intention (you can confirm now or save the "X-Hook-Secret" and confirm later)
    requests.post(
      'https://api.affinda.com/v3/resthook_subscriptions/activate',
      headers={
        'Authorization': 'Bearer <your-api-key>',
        'X-Hook-Secret': request.headers['X-Hook-Secret'],
      }
    )
    return make_response(status_code=200)
  else:
    # Handle webhook notification
    ...

You have confirmed your intention to subscribe and are now ready to start receiving webhook notifications!

Receive a webhook notification

IP whitelisting

If your system requires IP whitelisting for incoming webhook notifications, use the following IP addresses based on your region: Australia:

13.55.216.150
54.206.255.84

Europe:

3.75.80.175
18.156.30.58

United States:

34.208.181.154
54.245.207.8

Verify webhook payload integrity

Enable webhook payload signing

Enable webhook payload signingIt’s highly recommended to enable webhook payload signing, so that you can verify that the payload indeed comes from Affinda and has not been tampered with.

To enable webhook payload signing, set up a resthook signature key for your account

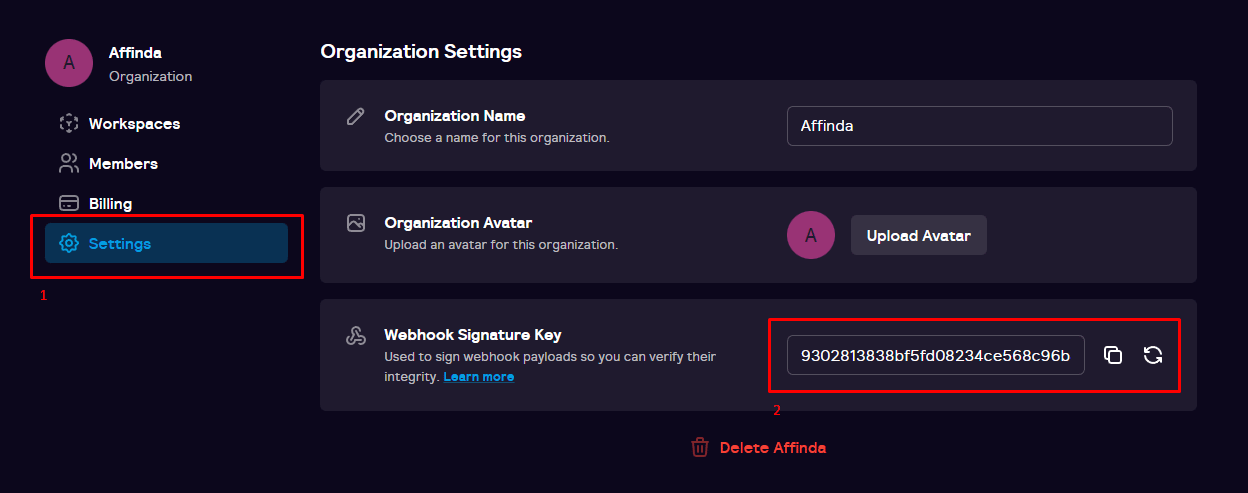

Go to Affinda
Click on the “Settings” tab of your Organization page
In the section “Webhook Signature Key”, copy the generated key (or click “Regenerate” to get a new key)

Verify the webhook payload when you receive it

In the webhook notification that Affinda sends, there’s a header called X-Hook-Signature of the following format: <timestamp>.<signature>. To verify the webhook payload, sign the request body with the Signature Key you set up in the previous step using SHA256, then compare the resulting signature with the signature found in the X-Hook-Signature header. Only process the data if the signatures match! Confirm payload timestamp is within a short range of current time to prevent replay attacks. Example code

import hashlib
import hmac
import json
import time
from some_framework import make_response

def receiver(request):
  if "X-Hook-Secret" in request.headers:
    # Confirm subscribe intention
    ...
  else:
    # Handle webhook notification
    sig_header = request.headers['X-Hook-Signature']
    timestamp, sig_received = sig_header.split('.')
    sig_key = b'your-signature-key'
    sig_calculated = hmac.new(sig_key, msg=request.body, digestmod=hashlib.sha256).hexdigest()

    # Verify signature
    sig_verified = hmac.compare_digest(sig_received, sig_calculated)

    # Verify timestamp to prevent replay attack
    body = json.loads(request.body)
    now = time.time()
    max_timestamp_diff = 10 * 60  # 10 minutes
    timestamp_verified = (
      body["timestamp"] == int(timestamp) and
      now - body["timestamp"] < max_timestamp_diff
    )

    if sig_verified and timestamp_verified:
      print('Data is safe to process')
      process_data(body)
    else:
      print("Spies detected! Don't process the data")

    return make_response(status_code=200)

Respond to the webhook notification

If we receive status code 200, the webhook notification is considered successfully received. If we receive status code 410, the receiver is considered “gone” and we’ll automatically delete your webhook subscription. If we receive any other 4xx, 5xx status code, we’ll retry sending the webhook notification in increasingly wider intervals (exponential backoff retry strategy), and eventually stop retrying after about 1 day.

Webhook payload reference

The webhook payload is the metadata of the document. You can use it to retrieve the full parsed data if you need to.

{
  "id": "e3bd1942-635b-4971-b8f1-59543b0b2f1f",
  "event": "document.parse.completed",
  "timestamp": 1665637107,
  "payload": {
      "identifier": "abcdXYZ",
      "ready": true,
      "failed": false,
      "readyDt": "2023-02-10T08:05:30.775110Z",
      "fileName": "resume.pdf",
      "expiryTime": null,
      "language": "en",
      "pdf": "{{url_to_pdf}}",
      "parentDocument": null,
      "childDocuments": [],
      "pages": [
          {
              "id": 123,
              "pageIndex": 0,
              "image": null,
              "height": 841.0,
              "width": 595.0,
              "rotation": 0
          }
      ],
      "ocrConfidence": null,
      "reviewUrl": null,
      "createdDt": "2023-02-10T08:05:28.871650Z",
      "errorDetail": null,
      "file": "{{url_to_file}}",
      "collection": {
          "identifier": "abcdXYZ",
          "name": "Resume Parses",
          "extractor": {
              "id": 6,
              "identifier": "resume",
              "name": "Resume Parse",
              "baseExtractor": null,
              "validatable": false
          }
      },
      "workspace": {
          "identifier": "abcdXYZ",
          "name": "Recruitment"
      },
      "tags": [],
      "isOcrd": false,
      "isConfirmed": true,
      "confirmedDt": "2023-02-10T08:05:30.775110Z",
      "isRejected": false,
      "rejectedDt": null,
      "isArchived": false,
      "archivedDt": null,
      "errorCode": null
  }
}

Update webhook subscription

Request

URL: Update a resthook subscription Method: PATCH Body:

{
  "event": "document.parse.failed"
}

Response

Status code: 200 Body:

{
    "id": 1,
    "event": "document.parse.failed",
    "targetUrl": "https://your-receiver-domain.com/receive/",
    "organization": {
        "identifier": "abcdXYZ",
        "name": "Affinda",
        "userRole": "admin",
        "avatar": null,
        "resthookSignatureKey": "KEY",
        "isTrial": false
    },
    "active": true,
    "version": "v3",
    "autoDeactivated": false,
    "autoDeactivateReason": ""
}

Delete webhook subscription

Request

URL: Delete a resthook subscription Method: DELETE

Response

Status code: 204

List webhook subscriptions

Request

URL: Get list of all resthook subscriptions Method: GET

Response

Status code: 200 Body:

{
  "count": 1,
  "next": null,
  "previous": null,
  "results": [
    {
      "id": 1,
      "event": "document.parse.completed",
      "targetUrl": "https://your-receiver-domain.com",
      "organization": {
        "identifier": "abcdXYZ",
        "name": "Affinda",
        "userRole": "admin",
        "avatar": null,
        "resthookSignatureKey": "KEY",
        "isTrial": false
      },
      "active": true,
      "version": "v3",
      "autoDeactivated": false,
      "autoDeactivateReason": ""
    },
  ]
}

Retrieve webhook subscription

Request

URL: Get specific resthook subscription Method: GET

Response

Status code: 200 Body:

{
  "id": 1,
  "event": "document.parse.completed",
  "targetUrl": "https://your-receiver-domain.com/receive/",
  "organization": {
    "identifier": "abcdXYZ",
    "name": "Affinda",
    "userRole": "admin",
    "avatar": null,
    "resthookSignatureKey": "KEY",
    "isTrial": false
  },
  "active": true,
  "version": "v3",
  "autoDeactivated": false,
  "autoDeactivateReason": ""
}
